JW Fisher RMD-1 Remote Metal Detector

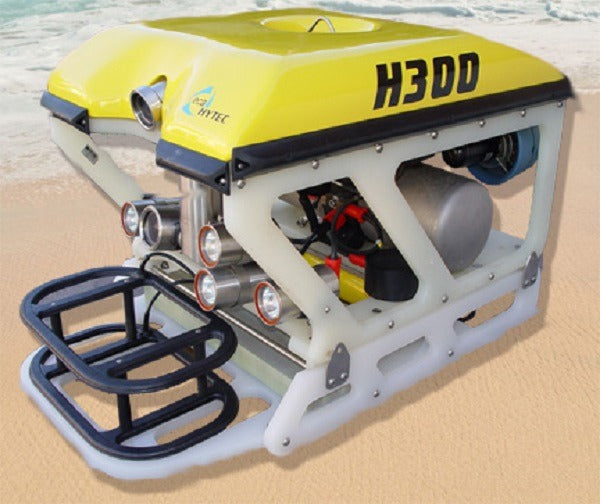

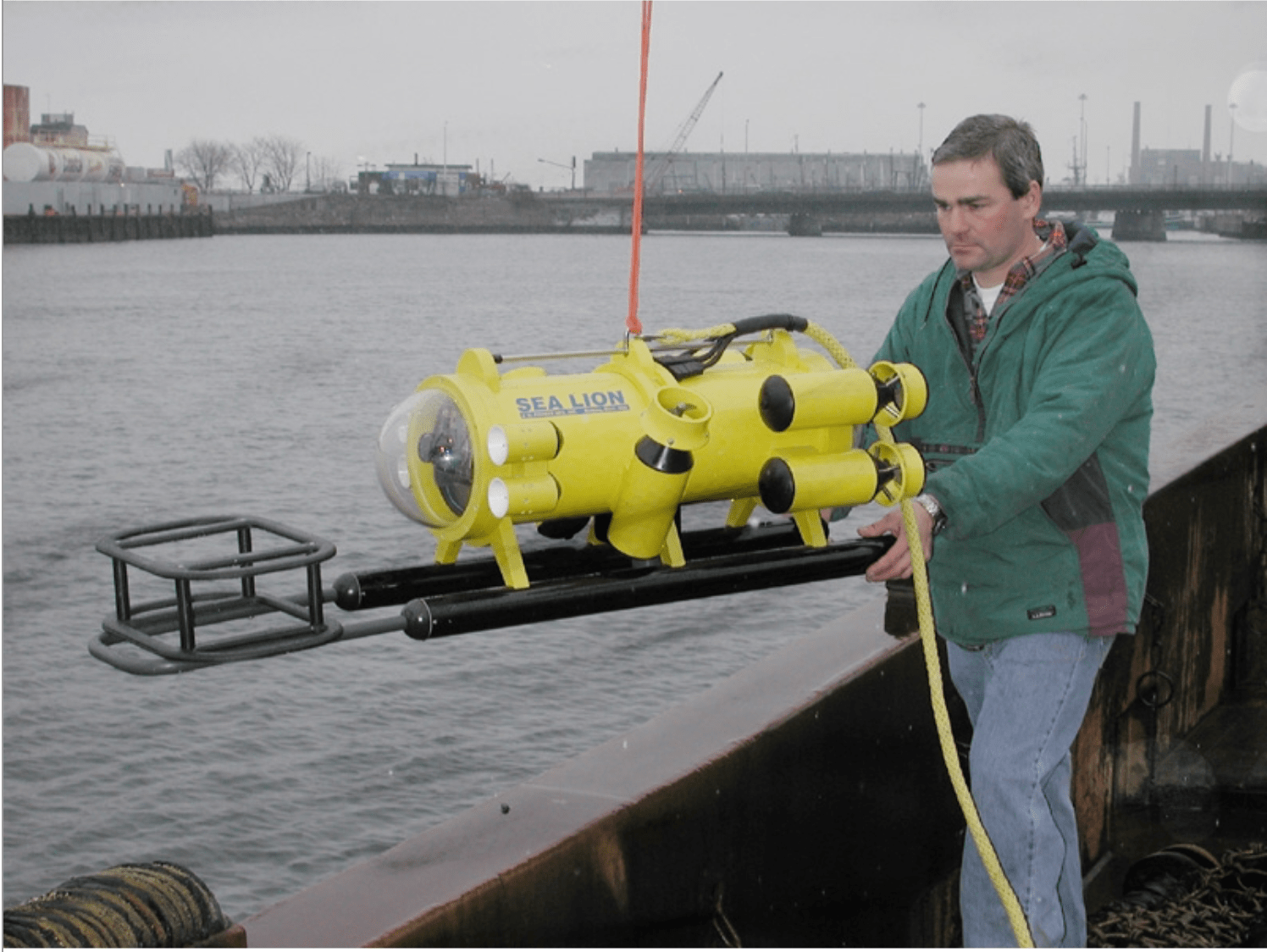

The RMD-1 is a high-performance pulse induction metal detector that can be attached to almost any ROV or towed underwater system, as shown in the photo. Pulse induction technology allows the RMD-1 to detect ferrous and non-ferrous metal objects on or beneath the ocean floor while ignoring minerals in the seabed. The remote metal detector locates and tracks underwater pipelines, finds missing tools and dredge parts, locates weapons and unexploded ordnance, and finds lost treasure.

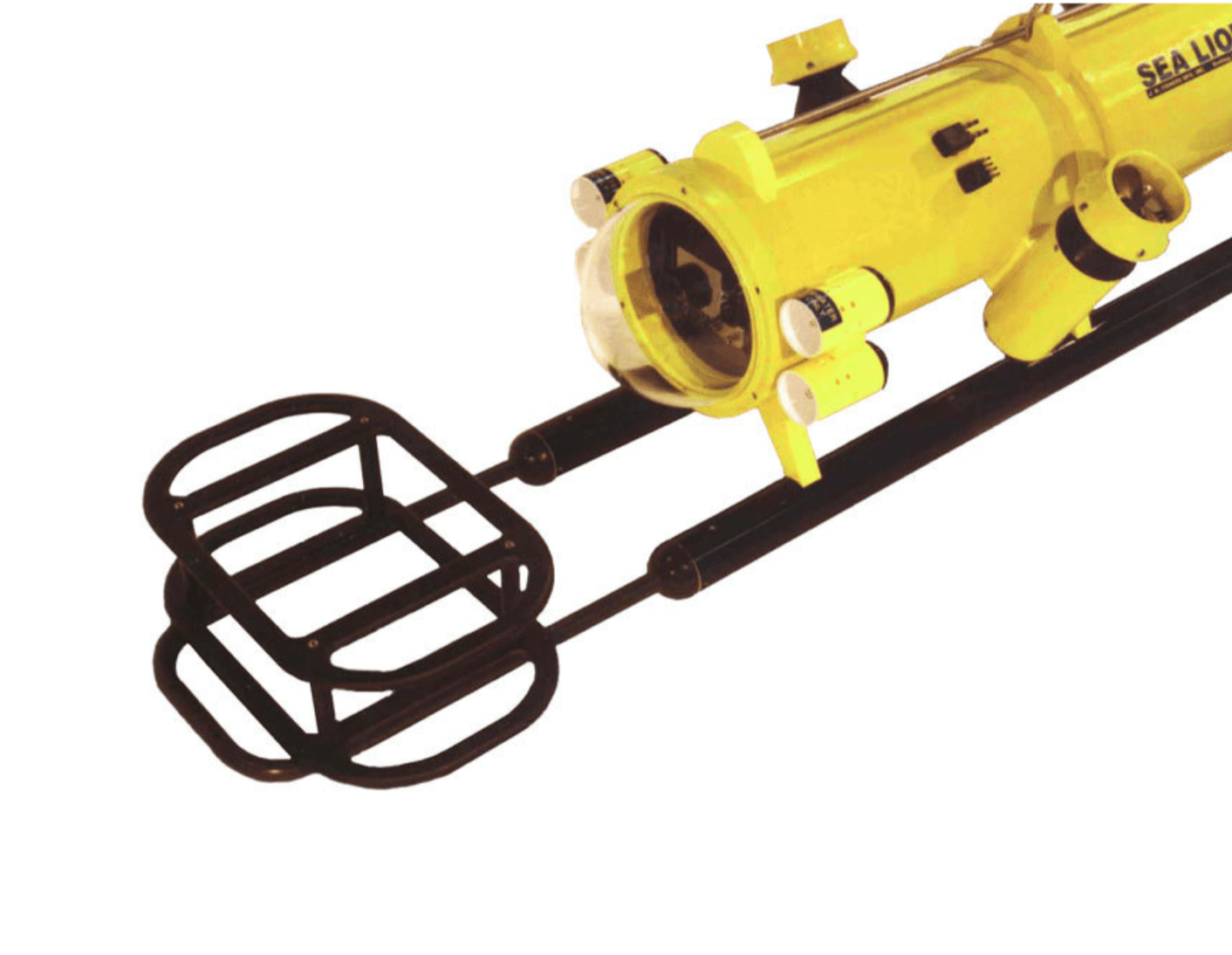

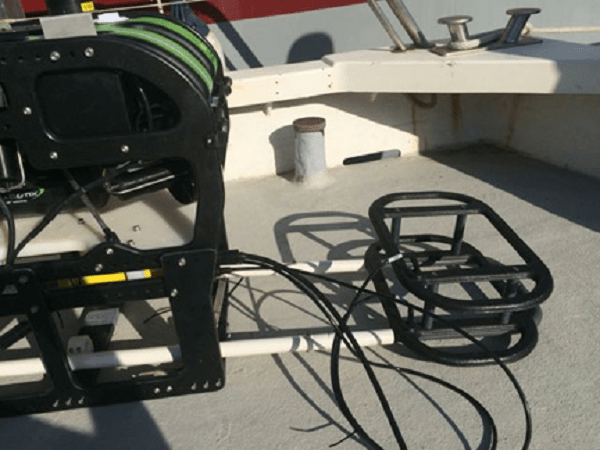

The system employs two coils molded into rugged ABS shells firmly attached to the underwater vehicle with a corrosion-proof tubular PVC frame. The frame provides a sturdy mount for the coils and positions them out in front of the ROV so as not to be affected by the ROV's metal parts. The oval coils produce a detection envelope that extends 3 to 5 feet into the bottom. The sleek, low-profile coil design minimizes drag and weight on the ROV.

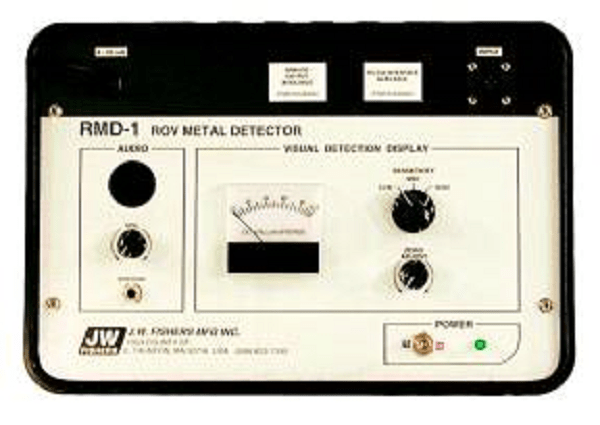

The standard RMD-1 has a control box which displays the readout with both meter and audio alarm. The closer the proximity of the metal target, the stronger the reading. The unit can use the underwater vehicle's umbilical cable to supply voltage to the downstairs electronics unit and to receive the output signal from the downstairs unit. The RMD-1 can be powered from 120 vac (standard) or 220 vac, or 9-36 vdc.

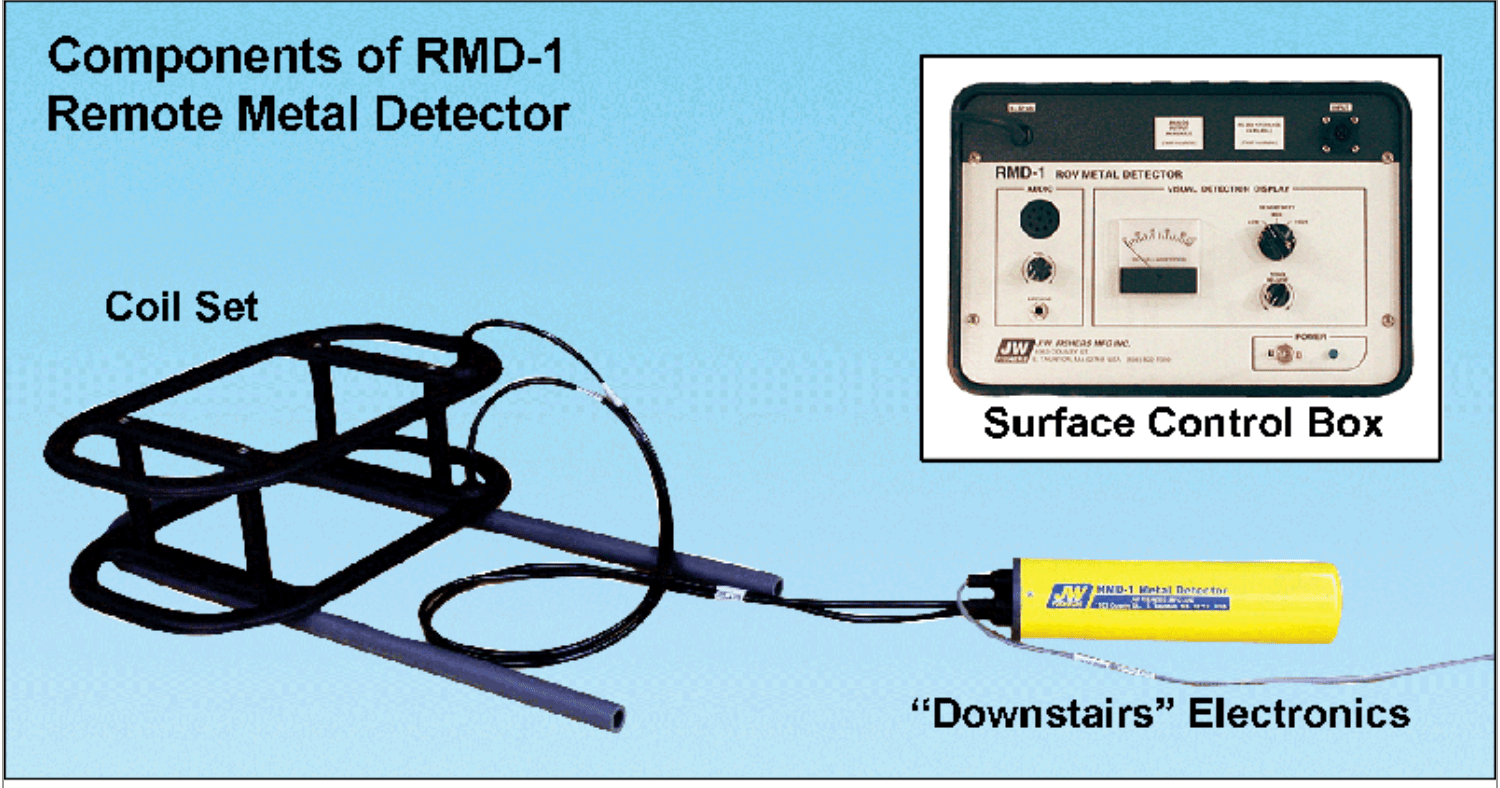

When the coil senses metal, it sends a signal to the RMD-1 "downstairs electronics unit" attached to the underwater vehicle. The downstairs electronics unit processes the information and can produce serial data output, 0-5 VDC output, or a proprietary signal used by the JWF control/readout unit. The output from the downstairs electronics unit can be transmitted through the ROV's umbilical or a separate cable. The ROV can power the downstairs electronics unit or supply power from the surface through the umbilical cable.
Details
- Easy to operate
- Readily attaches to most underwater vehicles
- Full ocean depth coils (optional)
- The RMD-1 Remote Metal Detector is backed by Fishers exclusive, unconditional TWO YEAR warranty.
- Detects All Metals
- 62 inch Deep x 52 inch Wide Detection Area
- Can Use Its Own Cable Or The Rov’s Cable
- Corrosive Proof Materials
- 2 Year Warranty
System Information
- Max Detection area (standard coil) - 62” deep, 52” wide
- Input voltage - 9-36 vdc “downstairs” , 120 vac topside box
- Power consumption - 8 watts
- Output signals - meter, audio, analog, RS232 with GPS (4,800 or 9,600 baud)
Sensitivity (in water or air)
- Piece of eight - 10 inches
- Shotgun - 28 inches
- 4” diameter pipe - 34 inches
- One gallon can - 36 inches
- 2’ x 4’ sheet metal - 50 inches
- Maximum range - 62 inches
Dimensions and Weights
- Coil set - 10” x 16” x 5”H / 38 oz. (air) w/out mount 48 oz. (air) with mount or 28 oz.(water)
- U/W housing & electronics - 9 1/2”L x 2 1/2”D / 1.4 lbs. (air) 4 oz. positive (water)
- Electronics alone - 1 7/8” x 7” x 1 1/2”H - 5 oz.
- Surface control box - 14”L x 10”W x 6”H / 7.6 lbs.
- Cable - 1/4”D x 150’-1,000’ / 4-25 lbs.
- Shipping box - 27”L x 23”D x 12”H - 25 lbs.
Options
- 9 to 18 VCD input power for topside box.
- Analog output (0-5 vdc) for box or "downstairs" electronics unit.
- Serial Output at "downstairs" electronics unit and serial input to topside control box (used if info is multiplexed in cable).
- USB Output at topside box with boat's GPS.
- USB is 4800 baud, 9600 baud is available.
- Coil set rated for "full ocean depth".
If anyone is interested in any of the additional options, call me and I will add to your order.
