JW Fisher MC-2 HD Mini Camera
MC-2 HD Mini Camera - JW Fishers lowest cost underwater video system.
JW Fishers MC-2 HD Mini Camera is an underwater camera designed for various applications. The HD-TVI camera produces 1920 x 1080 (1080p) full-HD video for sharp, detailed imaging. HD-TVI technology supports longer cable transmission distances while allowing the picture to travel over standard coax cable, producing a zero-latency, high-definition video experience.

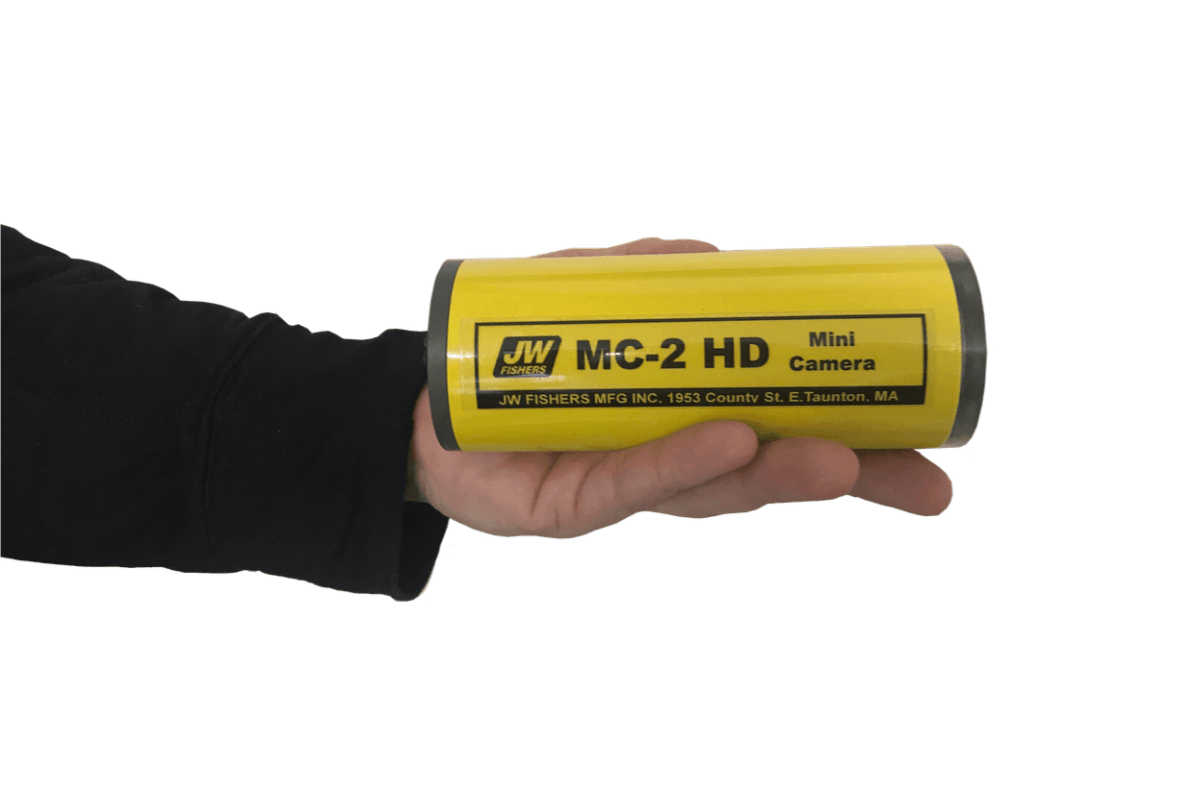

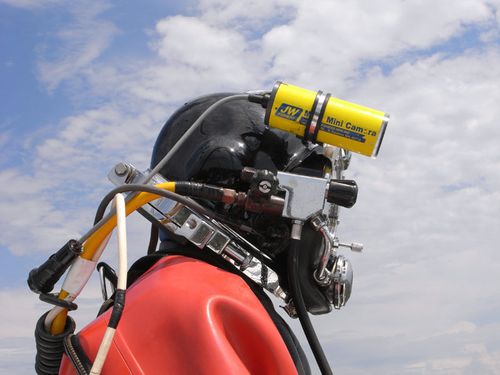

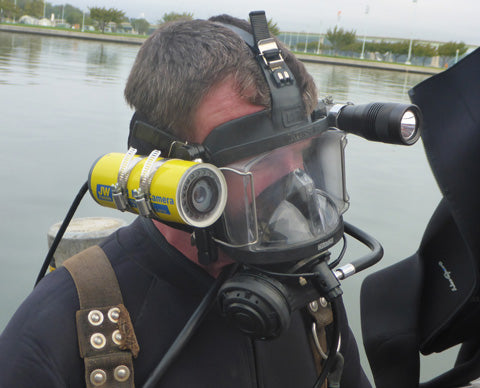

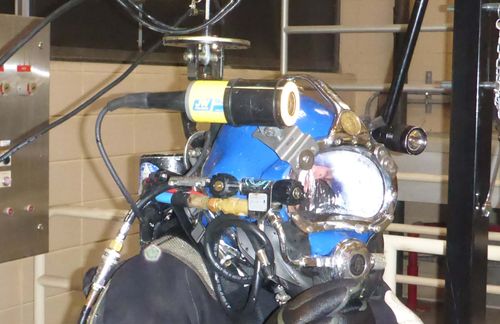

The Mini Camera is so compact and lightweight it can easily be mounted to a diver's helmet or lowered into a pipe for internal inspections. The MC-2 HD can assist the commercial diver in performing underwater structure inspections or be dropped into the water on a pole to perform shallow water inspections from the surface. Two light options are available: an internal LED light ring or external 1500-lumen LED lights. The LED light ring is excellent for close-up viewing underwater objects; the external light(s) are more powerful and have a broader beam for viewing objects at a greater range.

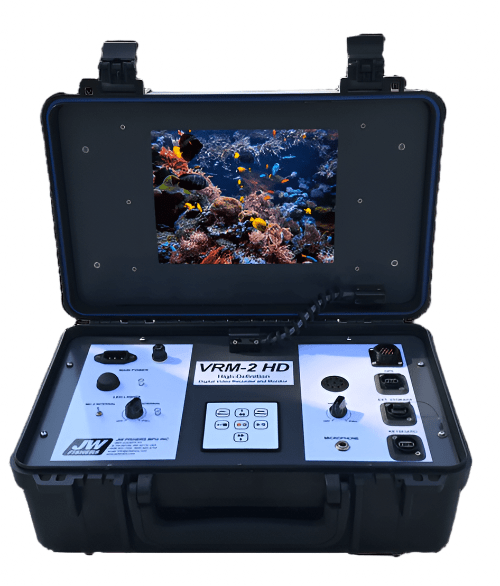

The base system includes a .08 lux, 1920 x 1080p, 2.1-megapixel camera, an internal LED light ring, a 500-foot depth-rated housing, and 150 feet of cable. The camera produces sharp, clear video sent topside from the underwater camera and can be viewed on a video monitor, a TV with an HDMI input jack, or Fishers VRM-2 HD. The video can also be recorded on our VRM-2 HD video monitor and recorder. T The VRM-2 has a built-in 10.4-inch flat screen ultra-bright display, which makes it easy to see even on sunny days, and it has a built-in digital video recorder that records up to 12 hours of video on an SD card.
Details
- 1080p HD-TVI video
- Surface powered by 100-240 VAC

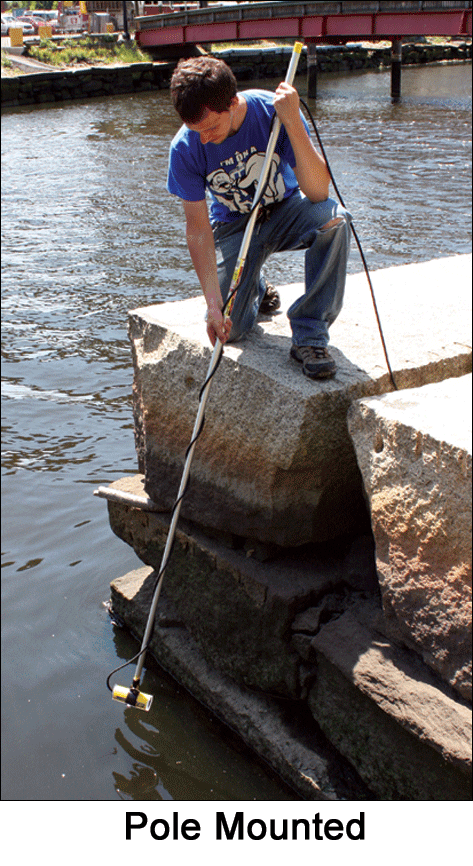

- Pole mountable

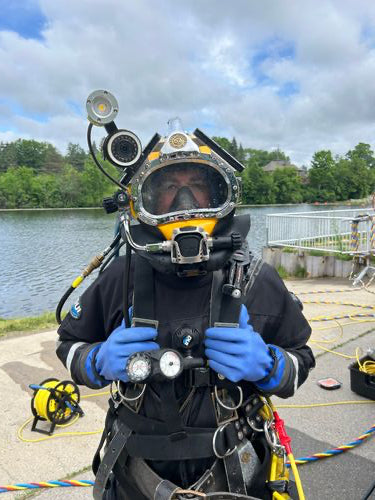

- Helmet mountable
- 1080p HD-TVI video
- 0.08 lux low light, 1080p color camera
- 1,000 foot depth rating
- Surface powered for extended operations
- 150-1,000 foot cable lengths
- 50° viewing angle
- Two different light options available
- The MC-2 HD mini camera system is backed by Fishers exclusive, unconditional TWO YEAR warranty.
System Information
- Camera - .08 lux, 1920 x 1080p, 2.1 mega-pixel camera
- Lights (optional) -1500 lumen, external LED(s) or LED ring
- Input voltage – 100 to 240 vac
- Cable - 9 conductor, urethane jacketed
- Operating depth – up to 1,000 feet
- Sealing - O-ring sealed; contains leak detector
Dimensions and Weights
- Camera housing - 6” L x 2.375” D - 16 ounces (air); 1 oz. (water)
- Cable - 0.3” Dia x 150’ – 1,000’
- 9-60 lbs. (air), 4-15 lbs. (water)
- LED Light and camera control box – 14” x 10” x 6” – 10 lbs
Available options
- Cable lengths up to 1,000 feet
- VRM-2 HD video monitor and recorder
- Internal Led Light Ring
- Adaptor for pole mounting
- (1) or (2) External 1500 lumen LED’s
If you are interested in any of the above additional items, call me, so I can add to your cart.
