JW Fisher DHC-2 HD Diver Held Camera
A diver-controlled underwater camera system with topside viewing.

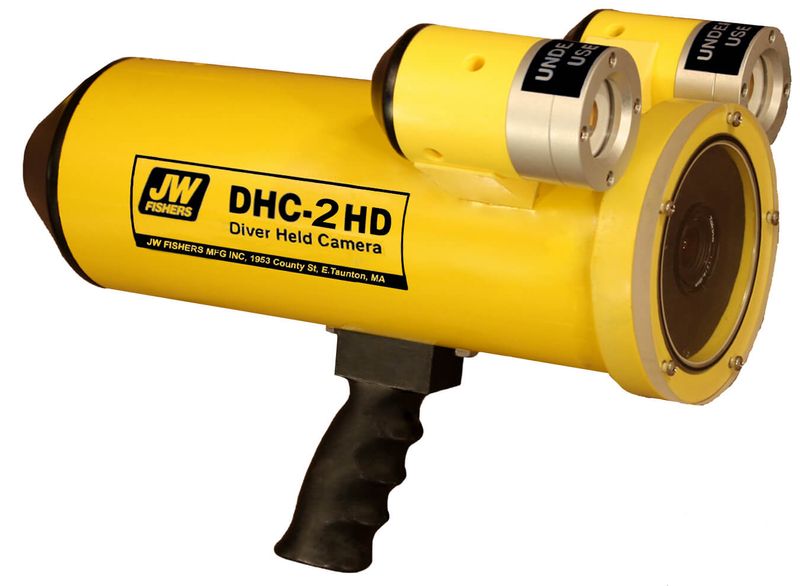

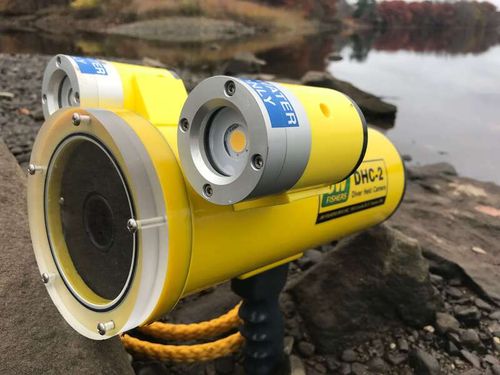

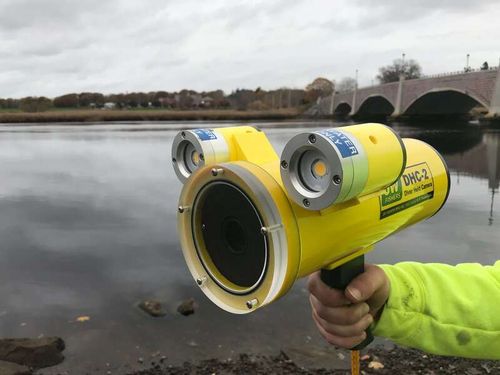

The DHC-2 HD Diver Held Camera system is the next-generation video camera, now coming standard with full-HD 1080p video. The HD-TVI camera produces 1920 x 1080 (1080p) full-HD video for sharp, detailed imaging. HD-TVI technology supports longer cable transmission distances while allowing the picture to travel over standard coax cable, producing a zero-latency, high-definition video experience. It is the ideal tool for hull inspections, bridge inspections, or any of the numerous underwater structure inspections encountered by today’s commercial divers. This system provides a cost-effective method for underwater search and video inspections. The DHC-2 HD is an ideal tool for hull inspections, bridge inspections, or any of the numerous underwater structure inspections encountered by today's commercial divers.
Lighting is provided by 3000-lumen lighting (two 1500-lumen LED lights). The camera operation and lighting are controlled with a switch on the rear of the camera housing and can also be controlled from the surface via the LED control box. The DHC-2 HD can be carried by a diver or attached to any underwater structure for around-the-clock monitoring of underwater sites. The DHC-2 HD uses power (100 to 240 vac) from the boat to operate its camera and lighting systems, allowing for unlimited operating time.

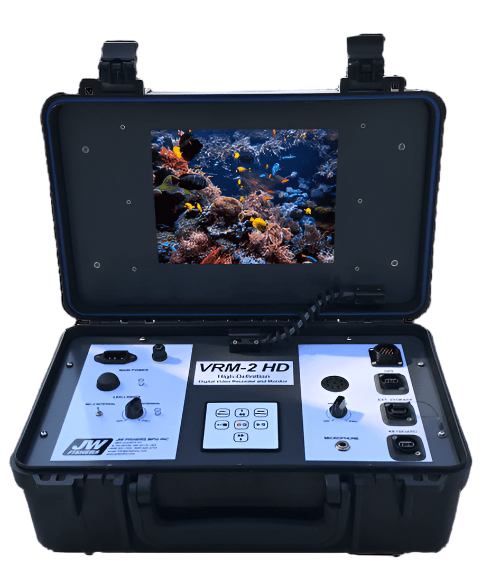

The picture can be viewed on a video monitor, a TV with an HDMI output, or Fishers VRM-2 HD. Fishers' VRM-2 HD can easily record the entire video of that favorite dive site or inspection job. The VRM-2 HD has a built-in 10.4-inch flat screen ultra-bright display that makes it easy to see even on sunny days, and it has a built-in digital video recorder that records up to 12 hours of video on an SD card. Download the VRM-2 HD technical data sheet for additional information.
Standard system comes with 150 foot Kevlar reinforced cable. The cable has an in-line underwater connector near the housing which allows the umbilical to be separated from the camera housing for easy transport and storage of the system.
Details
- 1080p HD-TVI video
- Surface powered for extended operations
- Adjustable, 3000 lumen LED lighting
- The DHC-2 HD Diver Held Camera system is backed by Fishers exclusive, unconditional TWO YEAR warranty.
- 1080p HD-TVI video
- 0.01 lux low light, 1080p color camera
- Compact camera & lighting system
- Surface powered for extended operations
- Adjustable, 3000 lumen LED lighting
- Carrying case for camera - optional
System Information
- Camera - .01 lux, 1920 x 1080p, 2.1 mega-pixel camera
- Light – Two, adjustable 1500 lumen LED lights
- Operating depth – 500 feet
- Sealing - O-ring sealed; Contains leak detector
- Power Requirements - 100 to 240 vac
Dimensions and Weights
- Camera housing - 11”L x 4.5” diameter - 7 lbs. (air); 6 oz. (water)
- Cable - .4”D x 150’ to 500’ - 20 to 68 lbs. (air); 4-30 lbs. (water)
- LED light and camera control box – 14” x 10” x 6” – 9 lbs.
Available Options:
- Cable lengths up to 500 feet
- VRM-2 HD
- CMS Cable Management System
- Hard carry case
If anyone is interested in any of the additional options, call me so I can add to your order.
